Item specifics
  • Model Number: 3A1-1639-C01SP-120-46
  • Brand Name: Superbat
  • Gain(dBi): 12dBi
  • Housing: Black
  • Frequency Range(MHz): 850-960/1710-2170MHz
  • VSWR: ≤1.5
  • Max Input power(W): 60
  • Input Impedance: 50 ohm
  • Connector Type: CRC9 male plug straight
  • Cable Length(cm): 46cm
Product Description

click to more GSM/3G/4G ANTENNA

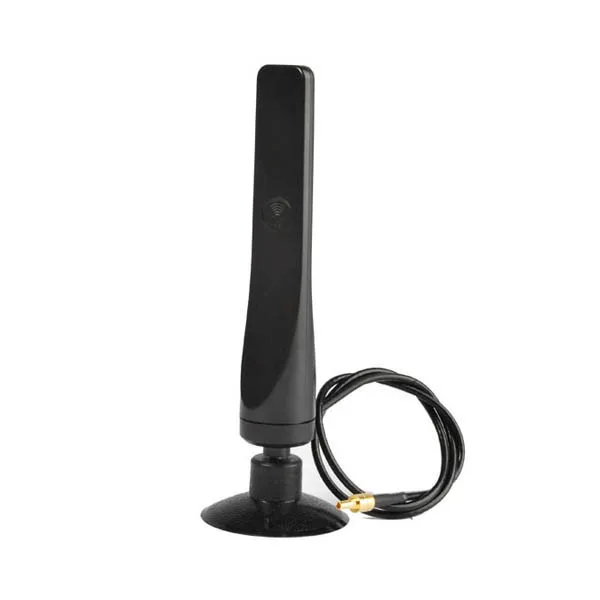

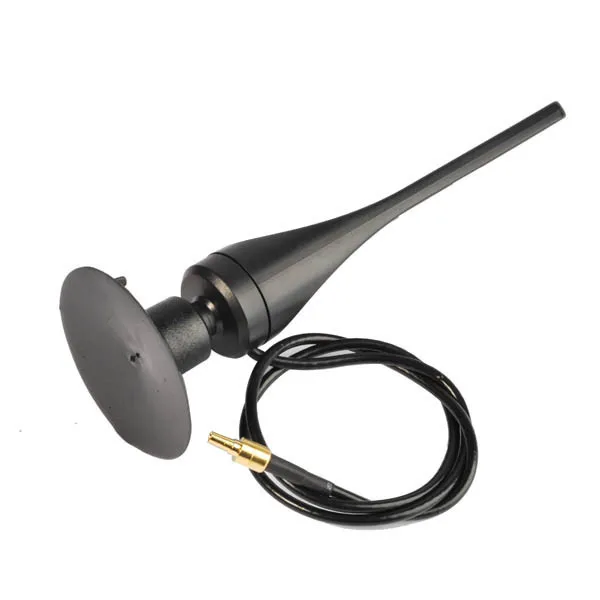

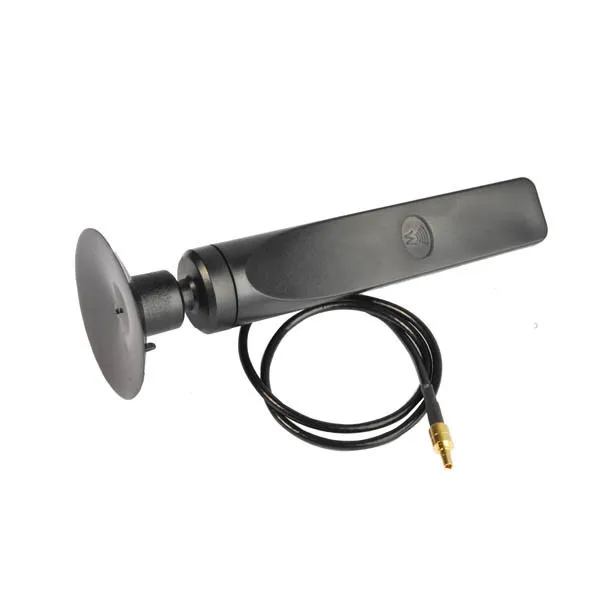

850/1900/900/1800/2100Mhz UMTS/HSPA/CDMA/GSM/3G Antenna 12dBi 850-960/1710-2170MHz Aerial Suctorial Signal Booster CRC9 Male



12dbi High-gain antenna Increases the signal strength and performance of 3G Wireless Network.

Compatible with 3G mobile broadband wireless router or card.
Quick, simple installation, no software required.

Rubber base for preventing from abrasion,just unscrew your current antenna, and attach this antenna in its place.

Usable indoor or outdoors Enhance and maintain excellent signal quality.


  • Frequency Range  850-960 1710-2170
  • GSM GPRS EDGE 850 900 1800 1900MHz
  • CDMA 1900 MHz
  • VSWR  Not great 1.5
    Max Input power:60
    Input Impedance:50
    Polarization Type:Vertical
    Antenna Length:15cm
    Cable Length:46cm
    Cable Type: RG174 default
    Connector Type:CRC9 male plug straight default SMA SSMB TS9 MCX MMCX FME BNC TNC SMB MC-Card MS-147 etc., straight or right angle, male or female,please contact us if the connector is chosen!
    Mounting: Suction cup
    Housing: Black
    Weight: 43g
    Storage Temperature:  negetive45 deg C to positive 75 deg C
    Operating Temperature: negetive 45 deg C to positive 75 deg C


  • Power off wireless device
  • Plug connector into antenna port on wireless device
  • Power on wireless device
  • For best performance place antenna as close to exterior window as possible

Installation Tips

  • Antenna should be mounted vertically to maximize performance

Below is a list of 3G modems and the connector type so far as we are aware - this is not a full list of connector types and we cannot guarantee that this list is 100 percent correct.
We would always advise you check with your hardware manufacturer before making any purchase. We have collected this information from manufacturers websites and from customers.

The connectors  adapters we can offer you




Packaging Details
  • Unit Type: piece
  • Package Weight: 0.07kg (0.15lb.)
  • Package Size: 50cm x 40cm x 30cm (19.69in x 15.75in x 11.81in)
