Report item
Item specifics
  • Brand Name: TRANSBETTER
  • Color: Black
  • Transmission Distance: 25KM
  • Fiber Connector: SC
  • Power: External power
  • Fiber: Singlemode Single
  • Mode: Singlemode
  • Data Rate: 10/100M
  • UTP: 4 *RJ45
  • Wavelength: 1310/1550nm
Product Description

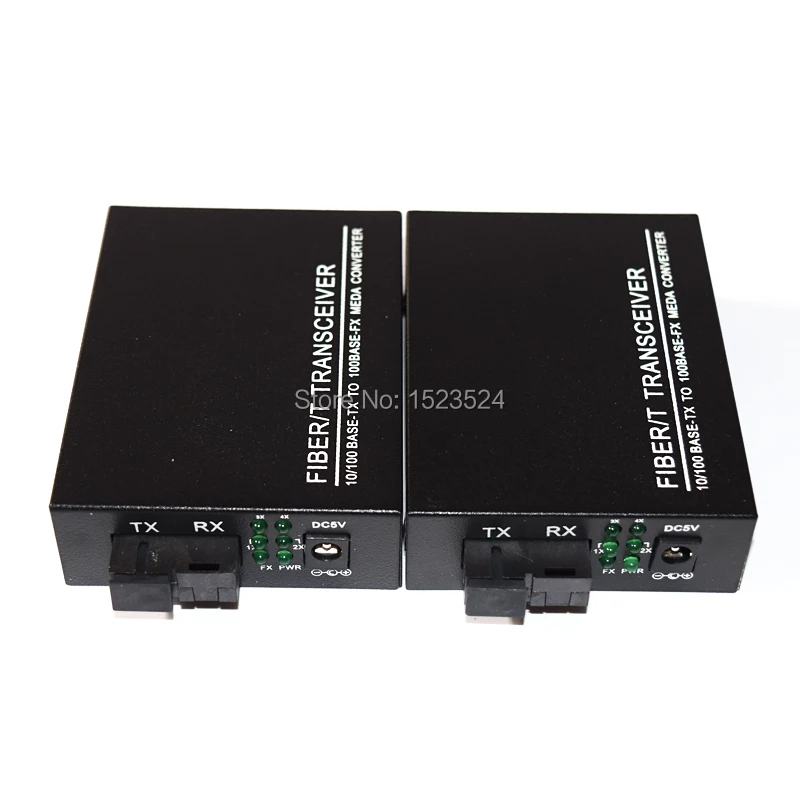

2pcs 1 Pair 10/100M  4 RJ45 1 SC Singlemode Single Fiber Optical Media Converter 25KM  for HD Camera



Welcome  to our  store



Our Target:



High Quality , Best Service ,Fast Respond

Welcome to China market,you can direct buy goods from China.I am glad you are interested in our items,we are the professional supplier in China, hope we can have good business here.

Shop announcement:

When you order the items,can select any items from my store together.
Top quality ; Competitive price ; Fast shipping;Drop shipping available;Best and Timely Service;100% Satisfaction ;Big discount for big order.



Warmly welcome to do Drop Shipping and Wholesale



Product Description:


It is a kind of 10/100Mbps adaptive fast Ethernet fiber converter with a built-in four-port 10M/100Mbps adaptive switch which can implement mutual conversion among four independent 10Base-T/100Base-TX twisted pair electrical signal and 100Base-FX optical signal conversion-FX optical signal.
It can extend the transmission distance of a network from 100m over copper wires to 120Km (single-mode full duplex mode).it supports two types of network connection media: 10/100Base-TX and 100Base-FX. With the application of the switching technology and the storing & forwarding technology,it can implement data transmission between two types of network connection media.


Features:

Adaptive 10Mbps and 100Mbps Ethernet network, for the convenience of network upgrading;
Efficient built-in switching core, to implement flow control and reduce broadcast packets;
Providing four independent 10/100Mbps adaptive switching-type twisted pair ports, to implement electrical interface backup and multi-user access;
Providing four electrical interfaces based on VLAN switch setting, and supporting the connection of users from different units;
Supporting full-duplex and half duplex transmission modes and capable of automatic negotiation;
Supporting automatic crossing of twisted pair ports, for the convenience of system debugging and installation;
Supporting the transmission of extra-long packets (with the maximum length of 1552 bytes);
Supporting Quality of Service (QoS) and ensuring transmission of VoIP packets;
Supporting Spanning Tree Protocol (STP) to form a redundant network;
Low power consumption, low heat dissipation and capable of stable operation for a long period of time;
Supporting single-mode and single-fiber , expanding the requirements of users;


Specifications:


Parameter

Specifications

Transmission mode

10/100Mbps

Standard

IEEE802.3 Ethernet Standard ,IEEE802.3u fastEthernet Standard ,IEEE802.3d Spanning Tree Standard

Wavelength

1310nm/1550nm

Transmission distance

Dual-fiber multi-mode: 2Km; dual-fiber single-mode: 25/40/60/80/100/120Km; single-fiber single-mode: 25/40/60/80/100Km
Category-5 twisted pair: 100m

Port

One RJ45 connector, connected to STP/UTP category-5 twisted pair
One fiber port: Multi-mode - SC or ST (fiber size: 50,62.5/125μm)
Single mode - SC fiber port (fiber size: 9/125μm)
Single-fiber single-mode - SC fiber port (fiber size: 9/125μm)

Conversion mode

Medium conversion, storing and forwarding

MAC address table

I K

Buffer space

1Mbit

Flow control

Full duplex state: flow control; half duplex state: back pressure mode

Delay

9.6us

Bit error rate

<1/1000000000

MTBF

100,000 hours

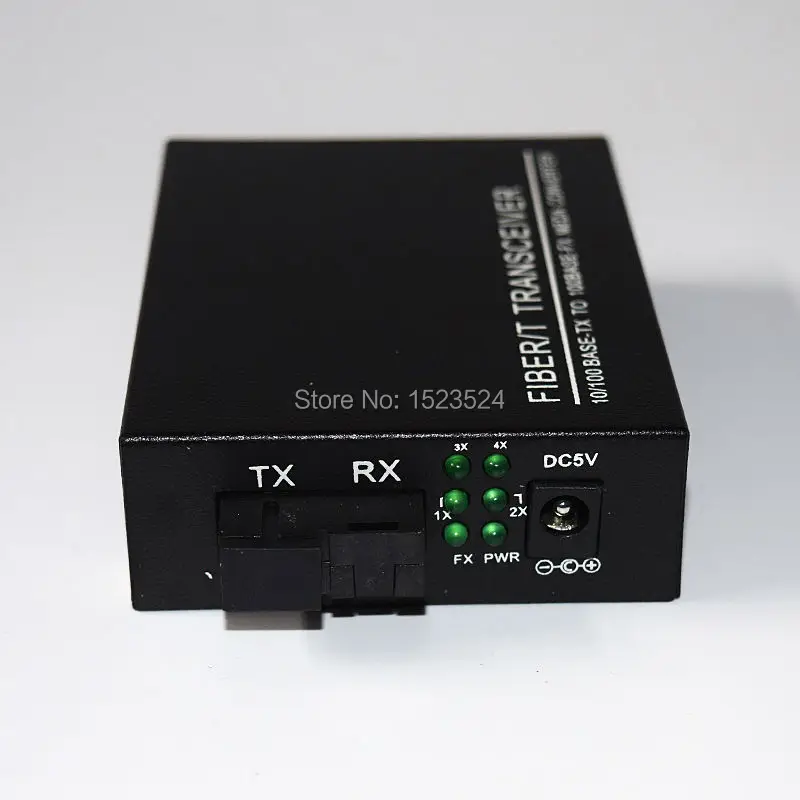

LED

POWER (power), FX LINK/ACT (fiber connection/action)
FDX (FX full duplex mode), FX100 (Fiber, with a transmission rate of 100M)
TP1/2/3/4 LINK/ACT (1/2/3/4-port twisted pairs connection action)
TP1/2/3/4100 (1/2/3/4-port twisted pairs, with a transmission rate of 100M)

Power

Input 100-240V(0.6A) 50/60HZ ,DC5V/2A (external)

Power consumption

2.5W

Operating temperature

0~70oC

Operating humidity

5%~90%

Storage temperature

-40~70oC

Storage humidity

5%~90% (non-condensing)

Dimensions

26mm(Height)*70mm(Width)*98mm(Depth) (external power)




1 2 3 9 4 5 8 10

Default Plug

6
EU Plug
7

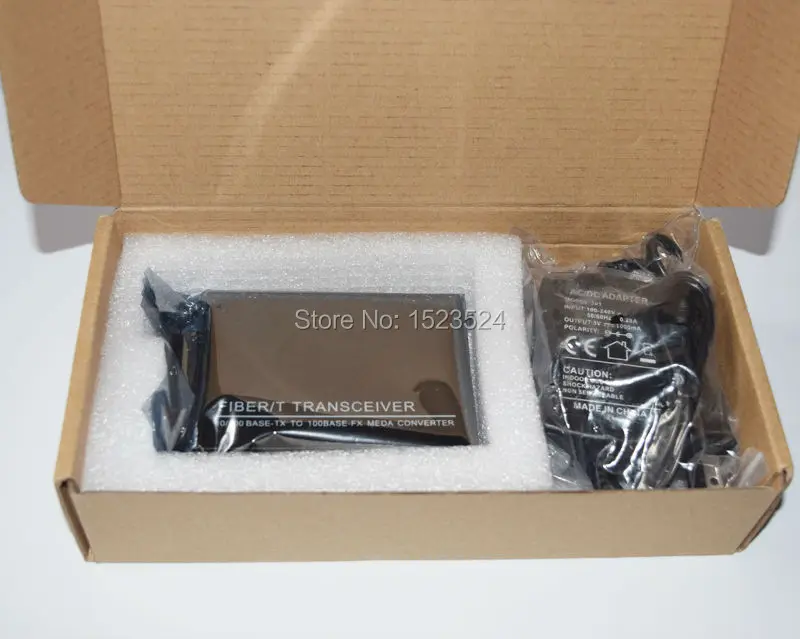

Package includes:

1. Ethernet Media Converter*1 pair(A/B)
2. Power Adapter (pls tell us your power adapter , or we\'ll send default adapter)
3. User Manual
