Item specifics
  • Brand Name: TRANSBETTER
  • Model Number: HH-123
  • Fiber: Singlemode Fiber G62D
  • Item: OTDR launch cable box Fiber Rings 1km
  • Connector: FC/SC/LC/ST customized
  • Applicable fibers: SM
  • Material: SR Polypropylene
  • Length x Width x Height: 9.37" x 5.56" x 2.62"
  • Weight: 0.75 kg (without fiber)
  • Typical Loss: < 1dB
  • is_customized: Yes
Product Description

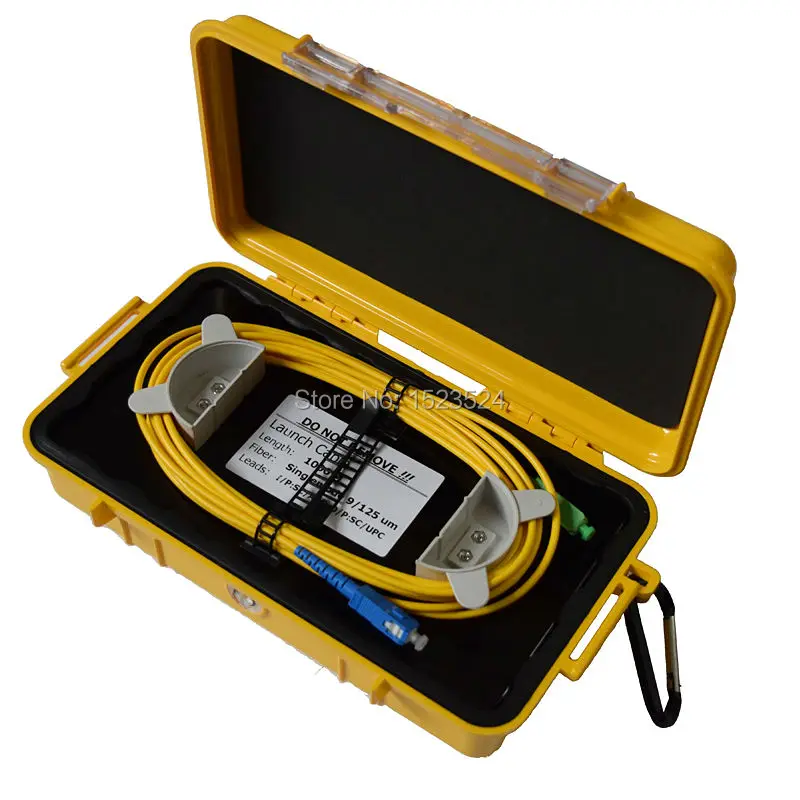

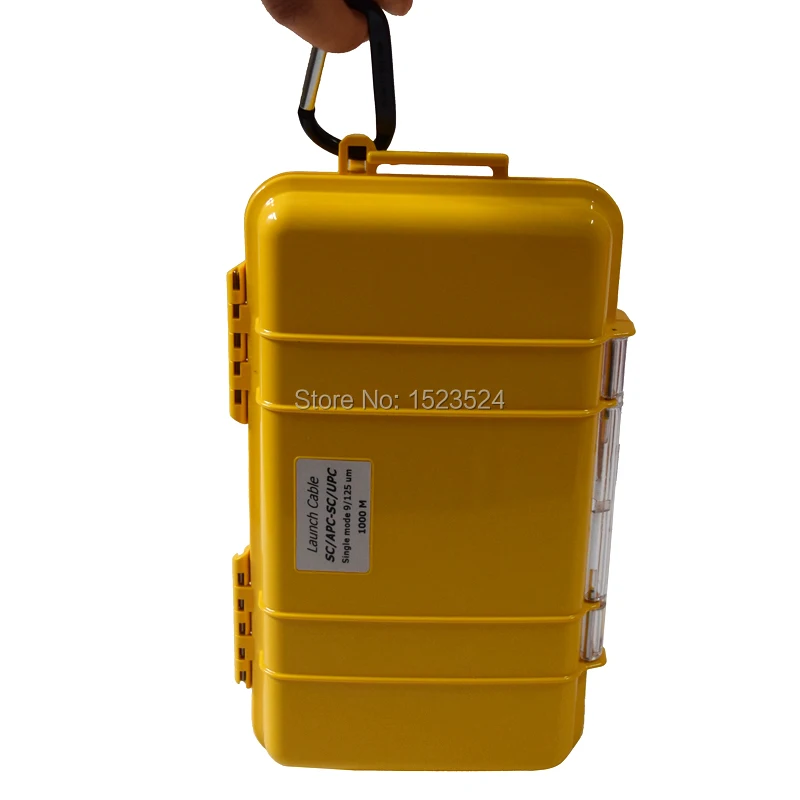

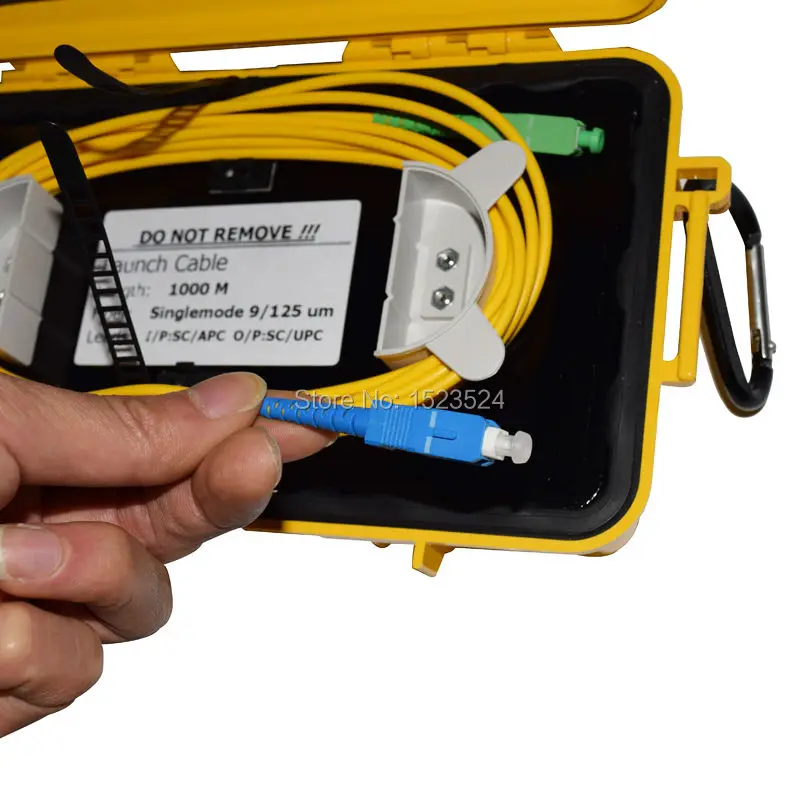

OTDR Dead Zone Eliminator,Fiber Rings ,Fiber Optic OTDR Launch Cable Box 1km SM 1310/1550nm



 NOTICE: Before placing order, you must tell us which connector type you need and end face , such as SC/FC/LC/ST, APC/UPC/PC ,

This Type is 1KM .



Brief Introduction

Designed to aid in the testing of fiber optic cable when using an OTDR. The OTDR Launch Fiber box is used with Optical Time Domain Reflectometers (OTDR\'s) to help minimize the effects of the OTDR\'s launch pulse on measurement uncertainty. Available in many different configurations and  fiber lengths

Features:

w  Pulse Suppressor, Launch Box, Delay Line, Installation/Testing, Training, Calibration
w  Compound Latch for positive seal and easy opening with locking feature.
w  Non­metal construction will not dent, corrode, or conduce electricity
w  Water and dust prove allowing the unit to be taken into almost any environment
w  Case can house up to 2,000 meters of fiber
w  Auto Purge Valve for changes in altitude and temperature

Specifications:

Mechanical%Environmental Characteristics
Dimension 9.37" x 5.56" x 2.62"
Material SR Polypropylene
Color Yellow
Weight 0.75 kg (without fiber)
Packaging Rugged,hard-shell transit case
Storage Temperature -40 ~ +85°C
Operating temperature -40 ~ +85°C
Humidity 0~95% (no condensing)

Fibe r& Connector Characteristics
Fiber Types G652D,G657A,OM1,OM3,OM4
Lead Length 2 Meters,3mm buffer
Typical Loss <1dB@1310 for 1000 meters
Connector Type SC/LC/FC/ST
Polish PC,UPC,APC
Return Loss UPC>=50dB,APC>=60dB,PC>=35dB
Repeatability(dB) <=0.2(1000 times)
Exchangeability(dB) <=0.2




Ordering Information



OTDR-A-B-C-D
A for Input connector B for Output connector
C for Fiber Mode D for Length
For Example: OTDR-SC-FCA-SM-1KM;1KM SM ,SC on I/P lead, FC/APC on O/P lead
