Item specifics
  • Model Number: gd020
  • Brand Name: VOTK
  • optic tester: 20MW
Product Description

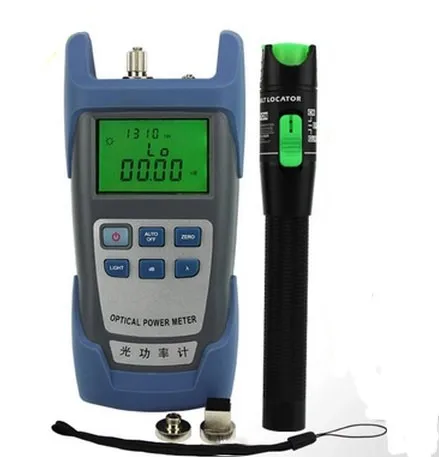

Handheld Optical Power Meter is the company introduced a new product , the appearance of the atmosphere, large screen display , feel good, for the installation , providing more accurate, durable and portable test instrument operation and maintenance of fiber optic networks. With a smart appearance, backlight display and optional automatic switch -off function , wide range of optical power test , accurate test precision and user self-calibration function and universal interface design, while the linear indicators (mW) and nonlinear index (dBm ) with the screen display .




Product Features

User self-calibration function
Linear (mW) and nonlinear index (dBm) displayed simultaneously
Unique FC / SC generic interface , without complicated conversion
The optional automatic shutdown
Optional on / off the display backligh
Wavelength Range
800 ~ 1700
Connector
FC / SC
Probe Type
InGaAs
Photosensitive surface diameter (um)
300,1000,1500,2000
Power Measurement Range
-70 ~ +10
Uncertainty
± 5%
Standard wavelength (nm)
850,980,1300,1310,1490,1550,1625
Display Resolution
Linear Display : 0.1% of the number display : 0.01dBm
Operating Temperature
-10 ~ +60
Storage Temperature
-25 ~ +70
Automatic shutdown time (min)
10
Power supply
7 battery   without  BATTERY

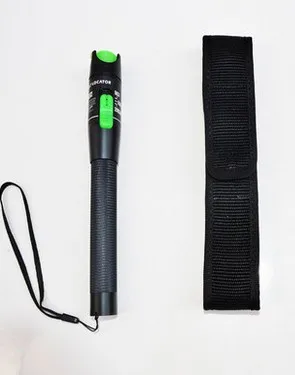

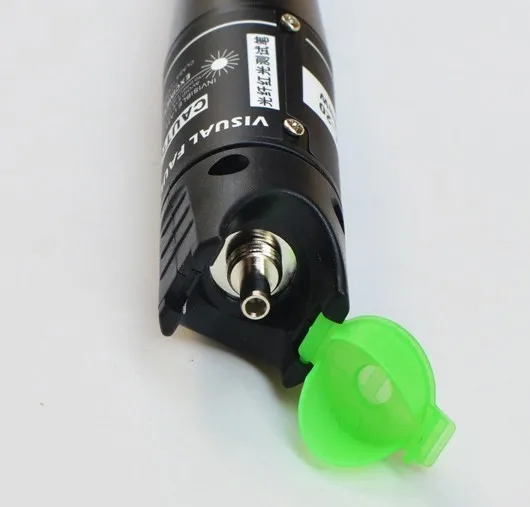

Light red pen red light pen visual fault detector

The latest push-button switch to prevent accidental activation key style, a waste of electricity.

Application
Link Loss Test
Can be optical attenuator calibration source


Product Features
--- With low battery detection indicator.
--- Written design is easy to carry.
--- 20mW output power, 10-20 km test distance.

Specification

Model   1

Output Power   > 20mW
Output wavelength   650nm
2Hz    Have

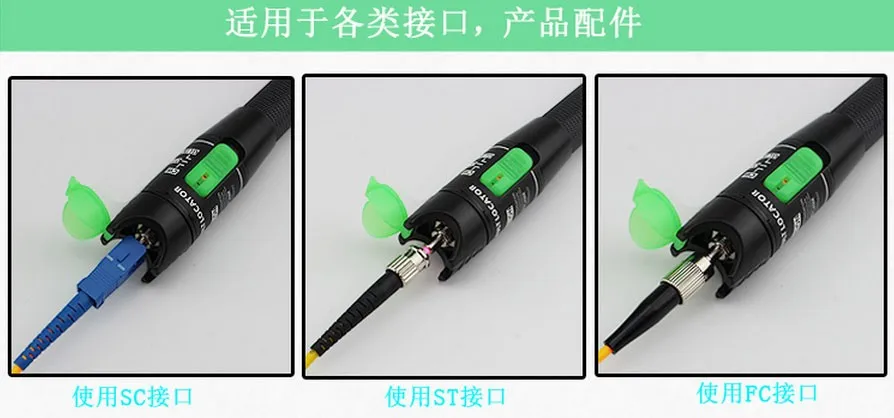

Connector Type
Universal Interface
Battery    AA batteries (5 #) without battery
Storage Temperature
-20 --- +70
Operating Temperature
-10 --- +60
Laser Type   LD
packing included
1pcs optical power meter
1pcs 20mw laser pen
1pcs black pen bag
1pcs SC connector
manual

1MW new set01






20mw
20mw01connector

1MW bk02








Packaging Details
  • Unit Type: piece
  • Package Weight: 0.6kg (1.32lb.)
  • Package Size: 10cm x 10cm x 10cm (3.94in x 3.94in x 3.94in)
